Lumatek LED Zues Xtreme 1000W (FAST GROW)

ZEUS 1000W Xtreme PPFD CO2

The Zeus 1000W Xtreme PPFD CO2 represents the ultimate solution for the growth of large plants, covering areas up to 3 square meters. Thanks to innovative CO2 technology, it accelerates growth by up to 65%, ensuring remarkable results. With the ability to provide extremely high levels of PPF and exceptional efficacy of up to 2.9 µmol/J, this grow light is designed to maximize plant growth in large environments. Integration of carbon dioxide (CO2) further optimizes plant growth, ensuring greater efficiency and superior results. The Zeus 1000W Xtreme PPFD CO2 is the ideal choice for growers looking to maximize productivity and achieve exceptional yields from large plants.

Introduction

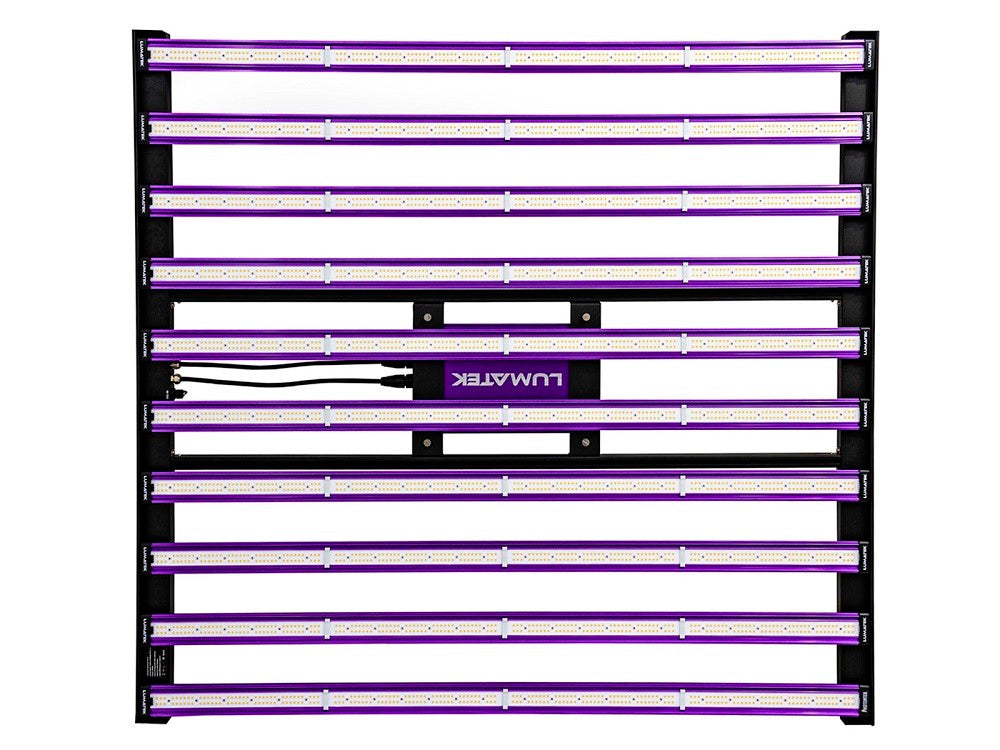

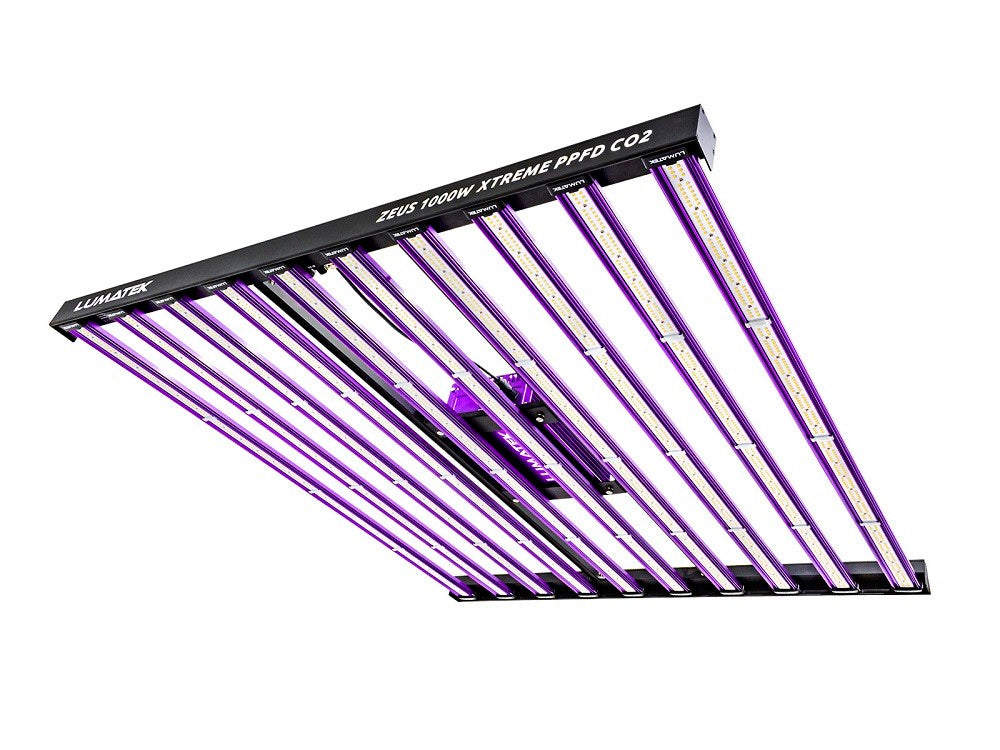

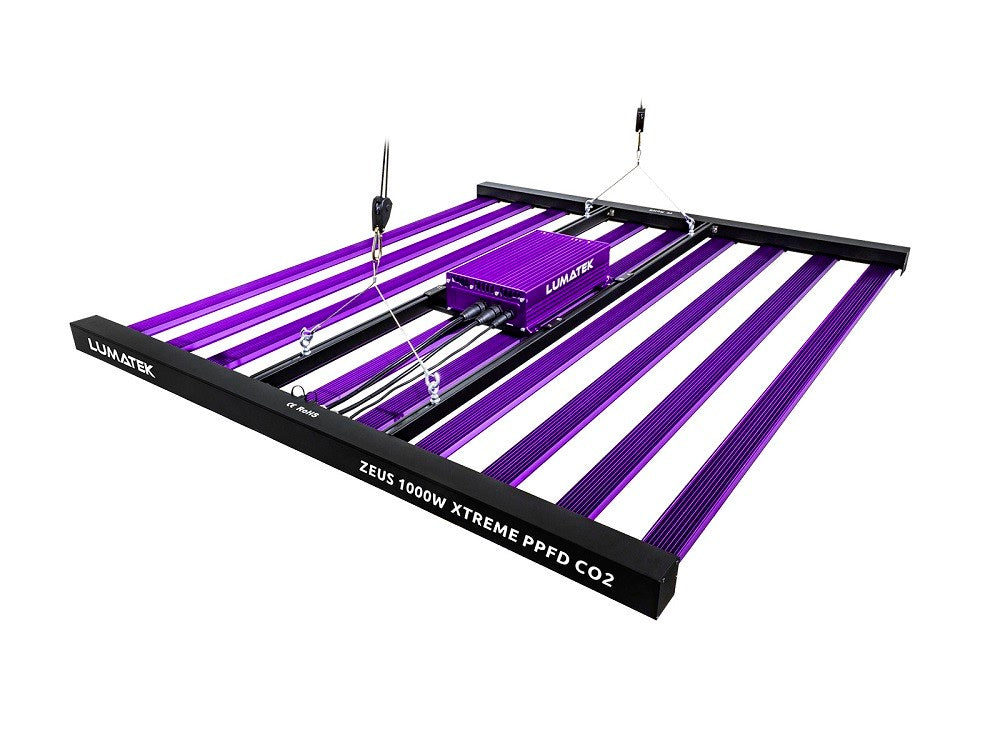

• The top-tier Lumatek Zeus 1000W Xtreme PPFD CO2 LED is a multi-light linear bar fixture producing extremely high levels of PPF at 2925 µmol/s and very high efficacy up to 3.5 µmol/J.

• Efficacy of the fixture varies depending on the input voltage used.
• Pioneers of innovative modular and magnetic design of LED light bars.


Increased Photon Output

• With advancements in technology and device performance, high-quality horticultural LED lighting is now a credible option offering significant returns on investment for growers. Lumatek horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring uniform light distribution and uniform spread.

• The Zeus 1000W Xtreme PPFD CO2 produces extreme levels of light intensity that require the use of supplementary CO2 for those intending to grow on cultivation areas of 3×3m with short distances from the canopy to the light.
• Carbon dioxide (CO2) integration: The use of CO2 with this fixture is not mandatory, but for those choosing not to, we recommend a greater distance from the canopy to the light, ensuring optimal PPFD levels based on the growth phase. Using this latter method, the optimal coverage area expected reaches 1.8×1.8m but with lower levels of PPFD intensity concentration.
• The use of CO2 supplementation in your controlled environment can significantly improve your crop yield if used correctly. In general, a good rule is that once PPFD exceeds 1000 µmol/s/m2, you should aim for a 1:1 ratio with CO2 PPM – up to 1500. Thus, at maximum PPFD = 1500 µmol/s/m2, CO2 would be 1500 PPM (slightly lower, 1400 PPM can be safer to start).


Uniform Light Distribution

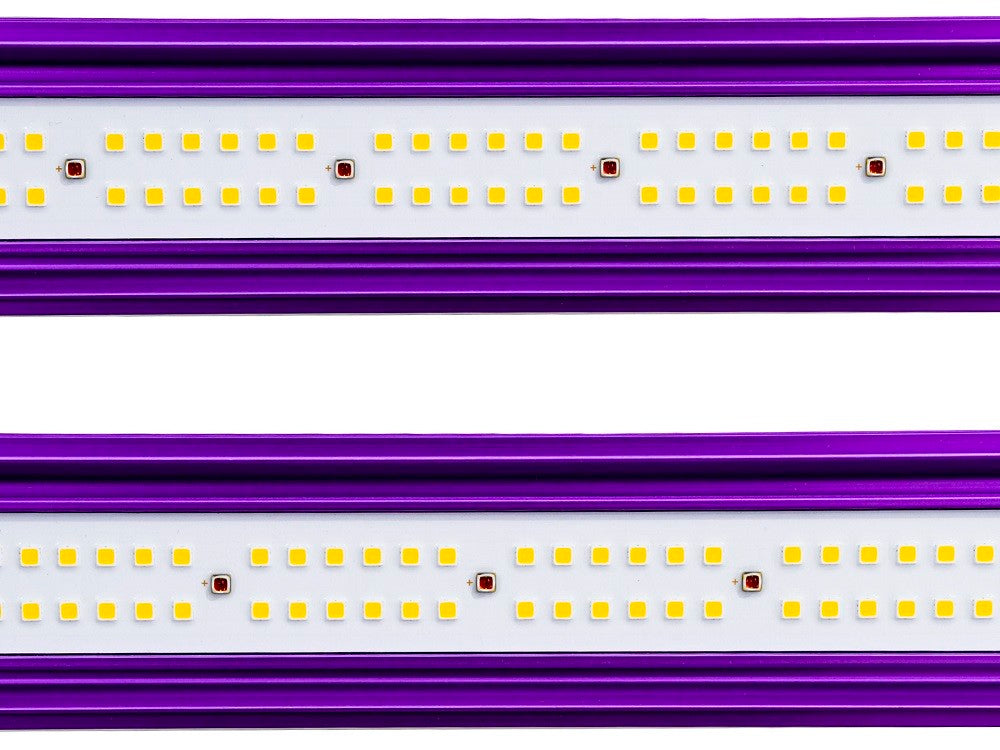

• The new Zeus lineup is built using high-quality Lumatek drivers and top bin LEDs of the latest generation from Lumileds and Osram, generating a full-spectrum light source ideal for veg and flowering cycles. Another new feature of this lineup is the Clear Glue protection technology on the LED bars; the result is higher light transmittance of 99% without light loss, increased diode lifespan, greater corrosion resistance, and high IP65 waterproof rating. For basic maintenance, simply clean the bars with damp cotton.

• For various cultivars, propagation, and vegetative growth periods, the Zeus can be dimmed without losing efficiency. The high-efficiency, low-power LED configuration with 10 LED bars reduces LED temperature, increasing output, and improving light maintenance.

Control Compatibility

• The Zeus fixture can also be controlled externally with a Lumatek digital lighting controller (Digital Panel Plus 2.0) featuring light timing, automatic dimming (in 1% increments), temperature safety control, sunrise and sunset mode for up to 100 fixtures per controller.

Universal Control System Compatibility

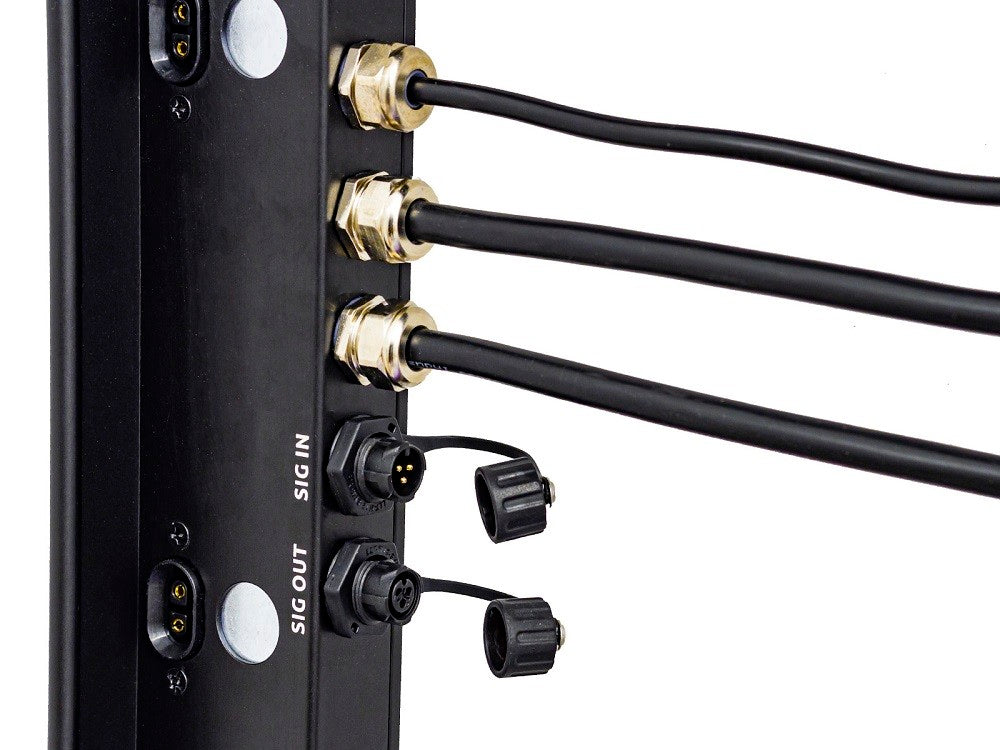

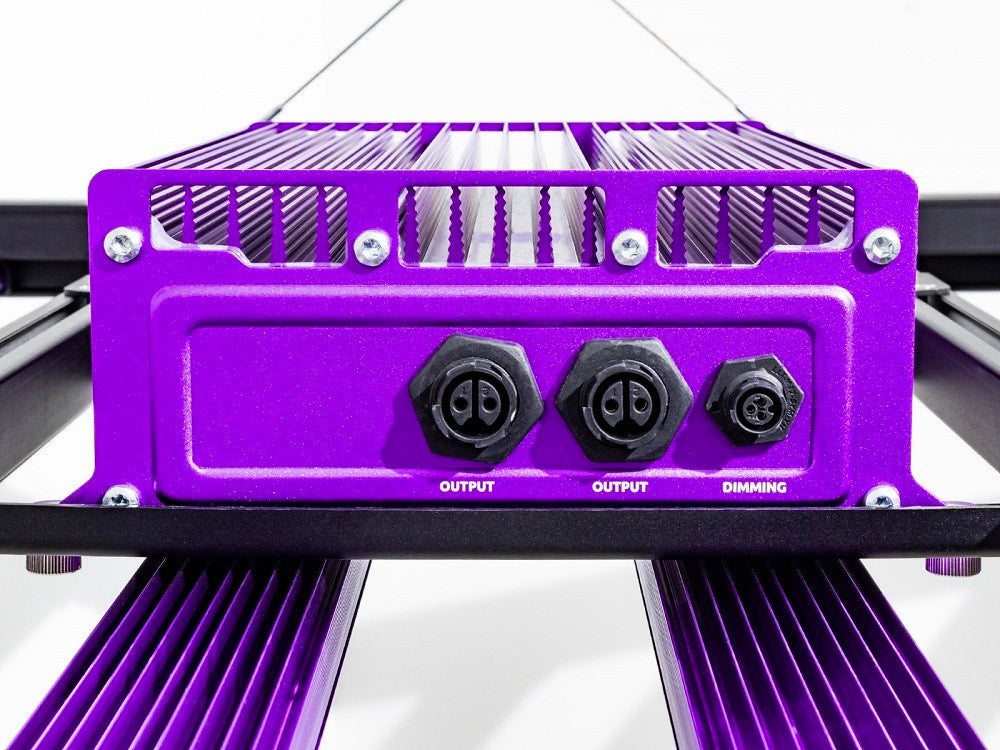

• Compatibility with Universal Control Systems: Lumatek LED fixtures can be fully controlled with the Lumatek Digital Panel Plus 2.0 or any other control system utilizing the 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still operate our LEDs using an RJ signal converter to a 0-10V control adapter

This new line of Zeus is built using high-quality Lumatek drivers and the latest generation top bin LEDs from Lumileds and Osram, generating a full spectrum light source ideal for veg and flowering cycles. Another new feature of this line is the Clear Glue protection technology on the LED bars; the result is a higher light transmittance of 99% with no light loss, increased diode lifespan, improved corrosion resistance, and high IP65 waterproof rating. For basic maintenance, simply clean the bars with damp cotton.

For various cultivars, propagation, and vegetative growth periods, the Zeus can be dimmed without losing efficiency. The high-efficiency, low-power LED configuration with 10 LED bars reduces LED temperature, increasing output, and improving light maintenance.

Assembly manual included
